The Specific Gravity Test of Bitumen: Procedure, Results, and Its Importance in Construction

Bitumen, a vital component in the construction industry, plays a pivotal role in various construction activities such as road construction, waterproofing, and roofing.

Bitumen, often referred to as asphalt or tar, is a viscous, black, and highly adhesive substance derived from the distillation of crude oil. Its versatile properties make it a valuable material in the construction industry. Bitumen serves various purposes, from providing stability to roads and highways to serving as a waterproofing agent in building structures. To ensure that bitumen meets the required standards for a specific application, it undergoes a range of quality control tests, including the Specific Gravity Test.

The Specific Gravity Test of Bitumen, also known as the Relative Density Test, is a critical assessment used to determine the density of bitumen concerning the density of water at a specific temperature. This test provides valuable insights into the bitumen's quality, purity, and suitability for specific construction applications. In this article, we will delve into the procedure of conducting the Specific Gravity Test, the interpretation of its results, and its significance in the construction industry.

The procedure of the Specific Gravity Test of Bitumen

Equipment and Materials

Before delving into the procedure, let's first familiarize ourselves with the equipment and materials required to perform the Specific Gravity Test of Bitumen:

Bitumen Sample: A representative sample of the bitumen under consideration.

  • Specific Gravity Flask: A specialized flask with a ground glass stopper and a known volume (typically 50 ml).
  • Distilled Water: Pure distilled water with a known temperature.
  • Thermometer: A calibrated thermometer to measure the temperature of the water and bitumen.
  • Balance: A precision balance capable of weighing the bitumen sample accurately.
  • Vacuum Pump: To remove trapped air from the bitumen sample.
  • Vacuum Chamber: A container in which the vacuum pump operates.
  • Constant Temperature Bath: Used to maintain a consistent temperature for both water and bitumen.
  • Hydrometer: A specialized hydrometer calibrated to measure the specific gravity of the bitumen.


Preparation of Bitumen Sample: Start by preparing a clean, dry bitumen sample. Ensure that the sample is representative of the material you intend to test.

Weighing the Bitumen: Weigh the bitumen sample accurately using a precision balance. It is important to record the sample weight.

Specific Gravity Flask: Fill the specific gravity flask with distilled water up to the calibration mark. The thermometer should be used to record the water's temperature. It is essential to maintain a constant temperature throughout the test.

Inserting the Bitumen Sample: Carefully insert the weighed bitumen sample into the flask filled with distilled water. Be cautious to prevent the formation of air bubbles.

Vacuum Procedure: Place the flask containing the bitumen sample and water in a vacuum chamber. Connect the vacuum pump to the chamber and create a vacuum. This step helps remove any entrapped air within the bitumen.

Restoration of Atmospheric Pressure: After the vacuum procedure, release the vacuum in the chamber, allowing atmospheric pressure to be restored.

Temperature Correction: Measure and record the temperature of the water and bitumen using the calibrated thermometer. Ensure that the temperatures match.

Hydrometer Reading: Immerse the calibrated hydrometer into the flask and take a reading. The hydrometer will float, indicating the specific gravity of the bitumen sample concerning water at the measured temperature.

Recording Results: Record the specific gravity value obtained from the hydrometer. This value represents the specific gravity of the bitumen sample.

Calculating Specific Gravity: Calculate the specific gravity of the bitumen sample using the formula:

Specific Gravity = (Weight of Bitumen in Air) / [(Weight of Bitumen in Air) - (Weight of Bitumen in Water)]

Repeat for Accuracy: To ensure accuracy, repeat the test with multiple bitumen samples and take an average of the specific gravity values.

Results of the Specific Gravity Test of Bitumen

The results obtained from the Specific Gravity Test of Bitumen provide valuable information about the quality and properties of the bitumen. Here's how to interpret the results:

Specific Gravity Value: The primary result of the test is the specific gravity value of the bitumen sample. This value represents the density of bitumen concerning water at a specific temperature. A higher specific gravity indicates a denser bitumen, while a lower value suggests a less dense bitumen.

Purity Assessment: Specific gravity values can help assess the purity of bitumen. Impurities, such as mineral matter or contaminants, can alter the specific gravity. Deviations from expected specific gravity values may indicate impurities.

Grade Determination: Specific gravity values are used to classify bitumen into different grades. These grades determine the suitability of bitumen for various construction applications. Different grades have specific ranges of specific gravity that must be met.

Consistency Control: Consistency in specific gravity values is crucial for batch-to-batch consistency in production. Manufacturers and construction professionals use these results to ensure the uniformity of bitumen properties.

Compatibility Assessment: Specific gravity values are critical when bitumen is used in combination with other materials, such as aggregates or polymers. Matching specific gravity ensures compatibility and optimal performance.

Importance in the Field of Construction

The Specific Gravity Test of Bitumen plays a significant role in the field of construction. Its importance can be summarized in several key aspects:

1. Quality Control: Bitumen is a fundamental component in road construction, where its performance directly impacts road longevity and safety. By conducting specific gravity tests, construction professionals can ensure that the bitumen used meets quality standards. This, in turn, enhances the durability and safety of constructed roads.

2. Suitability for Applications: Different construction applications require bitumen with specific properties. For example, road surfaces demand bitumen with a specific balance of hardness and flexibility, while waterproofing applications require bitumen with excellent adhesion and water resistance. Specific gravity tests aid in selecting the right bitumen grade for the intended application.

3. Compatibility: In construction, bitumen is often used in conjunction with other materials, such as aggregates, polymers, or adhesives. Matching the specific gravity of bitumen with these materials ensures compatibility and promotes the desired physical properties in the final product.

4. Cost-Efficiency: Using bitumen with the appropriate specific gravity for a given application not only ensures quality but also contributes to cost-efficiency. Construction projects can minimize waste and reduce material costs by using bitumen that precisely meets the required specifications.

5. Environmental Impact: Proper selection of bitumen based on specific gravity can reduce environmental impact. By using bitumen with suitable properties, construction professionals can create longer-lasting structures, reducing the need for frequent repairs and maintenance, which can be resource-intensive and environmentally burdensome.

6. Regulatory Compliance: Regulations and standards govern the use of bitumen in construction. Meeting specific gravity requirements is often a regulatory necessity to ensure that constructed structures comply with safety and performance standards.

7. Research and Development: Innovation in construction materials, including bitumen, is ongoing. Specific gravity tests provide essential data for research and development efforts aimed at improving the properties of bitumen and finding new applications in construction.

8. Safety and Durability: Roads and highways are critical infrastructure elements that need to withstand heavy traffic loads and adverse weather conditions. Bitumen with the right specific gravity contributes to the safety and durability of road surfaces, reducing the frequency of repairs and maintenance.

To get more details, watch the following video tutorial.

Video Source: Infinity Galaxy


The Specific Gravity Test of Bitumen is a fundamental quality control measure in the construction industry. It helps determine the density of bitumen concerning water at a specific temperature, providing critical information about the bitumen's suitability for various applications.

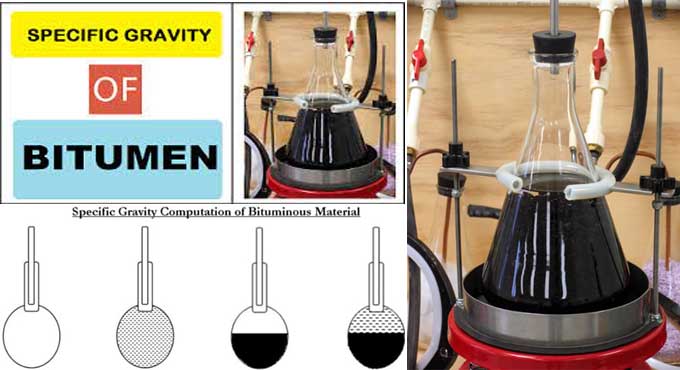

The Specific Gravity Test of Bitumen: Procedure, Results, and Its Importance in Construction

The results of this test impact the safety, durability, and cost-efficiency of construction projects, making it an indispensable tool for construction professionals. By ensuring that bitumen meets specific gravity requirements, construction projects can be completed with higher quality and greater longevity, contributing to the overall sustainability and success of the construction industry.
