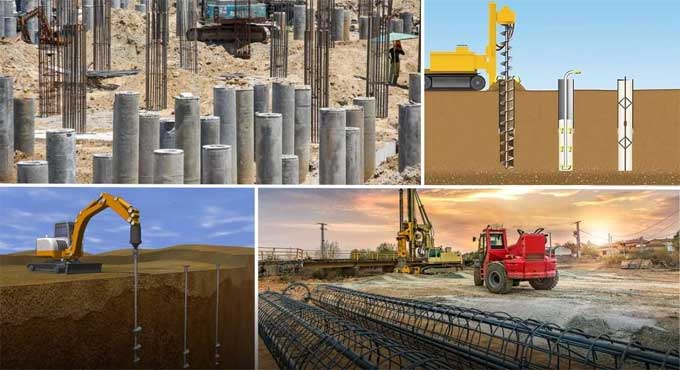

Piling for Foundation: Exploring the Uses and Characteristics of Pile Foundation

When it comes to constructing robust and long-lasting structures, a strong foundation is crucial. In many cases, building on solid ground is not always an option, especially in areas with soft or unstable soil. This is where pile foundations come into play. Pile foundations offer a reliable solution for constructing structures in challenging soil conditions. In this article, we will delve into the uses and characteristics of pile foundations, shedding light on their importance in modern construction projects.

What is a Pile Foundation?

A pile foundation is a type of deep foundation that transfers a load of a structure through vertical columns, called piles, to more stable soil or rock layers deep beneath the ground surface. Piles are long, slender structural members made of steel, concrete, or timber, which are driven or installed into the ground to provide support and stability.

What are the different uses of Pile Foundations?

1. Building on Soft or Unstable Soil

Pile foundations are commonly employed when the soil near the ground surface is weak or unstable, unable to bear the load of the structure. By reaching deeper, more stable soil or rock layers, piles distribute the load effectively, ensuring the structure remains stable. This makes pile foundations ideal for construction in areas with expansive clay, loose sand, or high groundwater tables.

2. Supporting Heavy Structures

Pile foundations are ideal for supporting heavy structures such as high-rise buildings, bridges, and industrial facilities. These structures exert significant vertical and horizontal forces on the foundation. Pile foundations are designed to bear these loads and provide the necessary stability and structural integrity.

3. Sloping Sites

In hilly or sloping areas, where the ground has varying levels of stability, pile foundations can be utilized to create a level platform for construction. By anchoring the piles into stable soil or rock layers, the structure can be erected on a more even surface. Pile foundations help to mitigate the effects of differential settlement and maintain the structural integrity of the building.

4. Waterfront Structures

Pile foundations are extensively used in the construction of waterfront structures like piers, docks, jetties, and offshore platforms. These structures must withstand the additional forces generated by water currents, tides, and wind. Pile foundations offer the necessary stability and load-bearing capacity to ensure the durability and safety of these marine structures.

What are the various characteristics of Pile Foundations?

1. Load-Bearing Capacity

The load-bearing capacity of a pile foundation is determined by various factors, including the type of pile material, diameter, length, soil conditions, and structural design. Piles are designed to withstand both vertical loads or compression and horizontal loads or lateral forces. The load-bearing capacity is calculated to ensure that the piles can safely support the anticipated loads throughout the structure's lifespan.

2. Types of Piles

Pile foundations come in various types, each suitable for different soil conditions and project requirements. Some common types include:

  • End-Bearing Piles: These piles transfer the load to a hard layer of rock or dense soil. They are driven into the ground until they reach this load-bearing layer. Materials used for end-bearing piles include steel H-piles and concrete piles.
  • Friction Piles: Support is provided by friction piles, which rely on frictional resistance between the pile surface and the surrounding soil in order to provide support. They are effective in cohesive soils such as clay or silt. Concrete or timber piles are commonly used as friction piles.
  • Combination Piles: Combination piles combine both end-bearing and frictional resistance characteristics. These piles are driven into the ground until they reach a load-bearing layer, while also utilizing the friction between the pile and the surrounding soil for additional support. Combination piles provide versatility and are suitable for diverse soil conditions.

3. Installation Methods

Piles can be installed using different methods, depending on the soil conditions and project requirements. Common installation methods include:

  • Driven Piles: Driven piles are forcefully driven into the ground using hydraulic hammers or vibratory equipment. The impact or vibrations assist in penetrating the soil and achieving the desired depth. This method is often used for steel or concrete piles.
  • Cast-in-Place Piles: Cast-in-place piles, also known as bored piles or drilled shafts, are formed by excavating a hole in the ground and pouring concrete into it. This method provides flexibility in terms of pile diameter and depth, making it suitable for various soil conditions.
  • Screw Piles: Screw piles, or helical piles, are screwed into the ground using specialized machinery. They have helical plates attached to their shafts, which anchor into the soil. Screw piles are advantageous in loose or sandy soils and offer ease of installation and reduced environmental impact.

4. Pile Integrity Testing

To ensure the quality and integrity of pile foundations, various testing methods are employed:

  • Pile Load Tests: Load tests simulate real-life conditions and assess the load-bearing capacity of piles. Static load tests or dynamic load tests are conducted to determine the pile's performance under different load scenarios.
  • Integrity Tests: Integrity tests evaluate the soundness and quality of piles. Techniques such as low-strain integrity tests or sonic echo tests are conducted to detect any potential flaws that may affect the pile's structural integrity.
  • Monitoring and Maintenance: Regular monitoring and maintenance of pile foundations are essential to identify any signs of settlement, displacement, or deterioration. This proactive approach allows for the early detection of issues and enables timely repairs or reinforcement to maintain the foundation's stability.


Pile foundations are essential components of modern construction projects, enabling the construction of structures in challenging soil conditions. Whether it is building on soft soil, supporting heavy structures, accommodating sloping sites, or constructing waterfront facilities, pile foundations offer a reliable solution for ensuring stability and longevity.

To get more details, watch the following video tutorial.

Video Source: Civil Engineering

Understanding the characteristics and applications of pile foundations is crucial for engineers and architects, as it allows them to design and construct robust structures that can withstand the forces of nature and provide a safe environment for future generations.
