Non-Destructive Testing of Concrete: A Comprehensive Guide

In the realm of construction and infrastructure, ensuring the quality and durability of concrete structures is paramount. To achieve this, engineers and inspectors employ a range of techniques, one of the most valuable being the Non-Destructive Testing (NDT) of concrete. NDT allows for the assessment of concrete's internal properties without causing damage to the structure.

This article delves into the world of Non-Destructive Testing of concrete, exploring its types, applications, step-by-step processes, advantages, and disadvantages, and offering valuable tips and tricks for successful implementation.

Understanding Non-Destructive Testing of Concrete

Non-Destructive Testing (NDT) refers to the evaluation of concrete structures without causing any significant damage. This technique enables engineers to assess properties such as strength, durability, and integrity while preserving the structural integrity of the element being tested.

NDT is an invaluable tool during construction, maintenance, and repair, as it provides insight into the health and performance of concrete structures without requiring invasive procedures.

Types of Non-Destructive Testing for Concrete

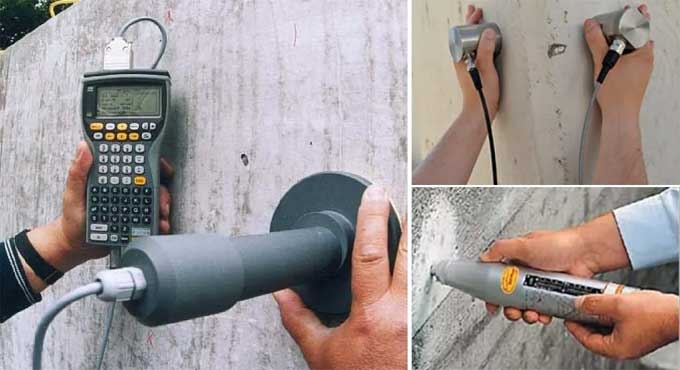

There are several NDT methods that engineers and inspectors employ to assess concrete structures. Each method offers unique insights into different aspects of the concrete's properties. Some common types of NDT for concrete include:

1. Ultrasonic Testing (UT)

Ultrasonic testing utilizes high-frequency sound waves to detect anomalies within concrete. A transducer emits ultrasonic waves into the concrete, and the time taken for the waves to reflect back is used to determine the concrete's thickness, voids, cracks, and other defects.

2. Rebound Hammer Test (Schmidt Hammer)

This method involves striking the concrete surface with a rebound hammer, and the rebound distance is measured. The rebound value correlates with the concrete's compressive strength.

3. Half-Cell Potential Mapping (Corrosion Mapping)

This technique is used to assess the likelihood of corrosion within reinforced concrete structures. It measures the electrochemical potential at the surface of the reinforcement to identify areas prone to corrosion.

4. Ground Penetrating Radar (GPR)

GPR employs electromagnetic waves to create an image of the concrete's internal structure. It can detect voids, cracks, and other defects, providing a detailed cross-sectional view.

5. Impact Echo Testing

By analyzing the frequency response of stress waves induced by impacting a concrete surface, impact echo testing can detect flaws, and delaminations, and determine concrete thickness.

6. Pull-off Testing

This method evaluates the bond strength between the concrete and its overlay or substrate by applying a tensile force to a bonded disc on the surface.

The Process of Non-Destructive Testing of Concrete

Non-Destructive Testing of concrete involves a series of steps that vary depending on the chosen method. Below is a generalized process that encompasses the core steps involved:

1. Preparation

Prepare the surface of the concrete by cleaning and ensuring it's free from debris and contaminants that could affect the test results.

2. Instrument Setup

Set up the chosen NDT equipment according to the manufacturer's guidelines. This includes calibrating the instrument and positioning it appropriately.

3. Testing

Conduct the NDT test by following the specific procedure for the chosen method. This could involve emitting waves, striking the surface, or measuring potential differences.

4. Data Collection

Record the data obtained from the NDT test. This could be measurements such as rebound values, wave reflections, or potential values.

5. Data Interpretation

Interpret the collected data to identify any anomalies, defects, or irregularities within the concrete structure. Compare the results to established standards and criteria.

6. Reporting

Prepare a comprehensive report detailing the NDT procedure, test results, interpretations, and recommendations for any required actions.

Advantages of Non-Destructive Testing of Concrete

Non-Destructive Testing offers numerous advantages that make it an indispensable tool in concrete assessment:

1. Preservation of Structure

NDT methods allow for thorough evaluation without causing damage to the concrete structure. This is especially crucial for critical structures where structural integrity must be maintained.

2. Real-time Results

Many NDT methods provide immediate results, enabling on-the-spot decision-making during construction or maintenance projects.

3. Cost-effective

NDT helps in identifying potential issues early, preventing costly repairs or replacements in the future.

4. Safety

Since NDT methods don't involve invasive procedures, they eliminate safety hazards associated with destructive testing.

5. Comprehensive Insights

Different NDT methods provide diverse insights into concrete properties, allowing engineers to understand multiple aspects of the structure's condition.

Disadvantages of Non-Destructive Testing of Concrete

While NDT is highly advantageous, it also comes with certain limitations:

1. Limited Depth of Penetration

Certain NDT methods have limited depth of penetration, which means they might not identify defects deeper within the structure.

2. Complexity

Interpreting NDT results requires expertise, and incorrect interpretations could lead to misinformed decisions.

3. Equipment and Training

NDT requires specialized equipment and trained personnel, adding to the cost and complexity of the testing process.

4. Surface Conditions

Surface conditions can impact the accuracy of NDT results. Rough or contaminated surfaces might affect readings.

5. Limited for Some Defects

Certain defects, such as internal microcracks, might not be detectable using some NDT methods.

To get more details, watch the following video tutorial.

Video Source: Ekeeda

Tips and Tricks for Successful Non-Destructive Testing

Select the Appropriate Method: Choose the NDT method that aligns with the specific properties you need to assess. Different methods excel at different aspects of concrete evaluation.

1. Calibration is Key: Properly calibrate the testing equipment before starting. Accurate calibration ensures reliable results.

2. Surface Preparation: Ensure the concrete surface is clean and free from debris, as surface conditions can influence test outcomes.

Non-Destructive Testing of Concrete: A Comprehensive Guide

3. Understand Standards and Criteria: Familiarize yourself with relevant standards and acceptance criteria for interpreting NDT results accurately.

4. Combine Methods: Sometimes, combining multiple NDT methods can provide a more comprehensive assessment of the structure's condition.

5. Experience Matters: Skilled and experienced personnel are essential for accurate testing and interpretation. Training is crucial for NDT success.

6. Regular Monitoring: Conduct regular NDT inspections throughout the lifecycle of the structure to track changes and address potential issues proactively.

Final Thoughts

Non-destructive testing of concrete stands as a cornerstone of modern construction practices. Its ability to reveal the hidden attributes of concrete structures without causing harm is invaluable.

By employing various NDT methods, engineers can ensure the longevity, safety, and performance of concrete elements. While it has its limitations, the advantages of NDT far outweigh its drawbacks, making it an essential tool in the arsenal of professionals dedicated to creating robust and enduring concrete structures.

As technology continues to advance, NDT methods will undoubtedly evolve, further enhancing our ability to understand and optimize the concrete structures that shape our world.
