Honeycombing in Construction: A Structural Imperfection in Construction and their Causes and Remedies

What are Honeycombs in Construction?

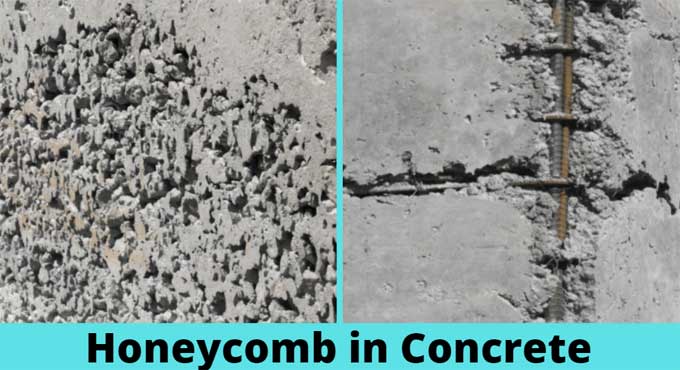

Honeycombs in construction refer to a common structural defect that occurs in concrete or masonry. It is characterized by voids or hollow spaces within the material, resembling the cells of a honeycomb. These voids occur when concrete or mortar fails to fill the entire formwork or mould during the casting process, leaving gaps or incomplete sections.

Honeycombs can result from various factors, including inadequate vibration of the concrete, improper mixture consistency, poor workmanship, or issues with formwork design and placement. When honeycombing happens, the affected areas lack the desired density and strength, compromising the overall integrity and durability of the structure.

What are the causes of Honeycombs in Concrete?

Honeycombs in concrete can be caused by various factors related to the construction process. Some common causes include:

1. Inadequate vibration: Insufficient or improper vibration of the concrete during the pouring process can result in honeycombing. Vibration helps to remove air voids and ensure proper compaction, but if it is not done effectively or for a sufficient duration, air pockets can remain, leading to honeycombs.

2. Improper mixture consistency: The consistency of the concrete mixture is crucial for achieving proper workability and filling the formwork adequately. If the mixture is too dry or stiff, it may not flow smoothly into all areas, resulting in voids and honeycombs. On the other hand, excessively wet or runny mixtures can also cause segregation and result in poor compaction.

3. Formwork issues: Problems with formwork design or placement can contribute to honeycombing. Insufficiently sealed formwork can allow the escape of excess water or fines from the concrete, leading to voids and honeycombs. Inadequate formwork support or improper alignment can also result in uneven filling and compaction.

4. Congestion of reinforcement: When reinforcement bars are not properly positioned or spaced within the formwork, it can obstruct the flow of concrete, resulting in poor compaction and honeycombing around the reinforcement areas. This is particularly crucial in densely reinforced sections.

5. Workmanship and time management: Human error and improper construction practices can contribute to honeycombing. Insufficient supervision, lack of skilled labour, or rushing through the construction process can lead to inadequate compaction, improper pouring techniques, or failure to address potential issues promptly.

6. Concrete placement and pouring techniques: Improper pouring methods, such as the free fall of concrete from excessive heights, can cause the separation of coarse aggregates and cement paste. This segregation can result in poor compaction and honeycombing.

7. Adverse weather conditions: Extreme temperature, humidity, or wind can affect the workability of the concrete, leading to difficulties in achieving proper compaction and filling. In such conditions, extra precautions and adjustments in the mixture and construction techniques may be required to prevent honeycombing.

How to prevent honeycomb in concrete?

Preventing honeycombs in concrete requires a combination of proper planning, careful execution, and adherence to construction best practices. Here are some key measures to help prevent honeycombing:

1. Proper mixture design: Ensure that the concrete mixture is properly designed with the appropriate proportions of aggregates, cement, water, and admixtures. The mixture should have the right consistency to flow easily and fill the formwork without excessive segregation or bleeding.

2. Adequate vibration: Employ effective vibration techniques during the concrete pouring process to ensure proper compaction and eliminate air voids. Use vibrators of the appropriate size and frequency to achieve optimal consolidation throughout the concrete.

3. Proper pouring techniques: Use appropriate pouring methods that promote even distribution of concrete without causing excessive segregation or displacement of aggregates. Avoid free fall of concrete from excessive heights, as it can lead to separation and air entrapment.

4. Quality formwork: Ensure that the formwork is properly constructed, sealed, and securely supported to prevent leakage and deformation during the pouring process. Use appropriate formwork materials and techniques to achieve the desired surface finish and minimize the risk of honeycombing.

5. Skilled workforce: Employ trained and experienced personnel who are knowledgeable about proper concrete placement techniques. Skilled workers can effectively handle the pouring, vibrating, and finishing processes to ensure adequate compaction and minimize honeycombing risks.

6. Proper reinforcement placement: Ensure that reinforcement bars are correctly positioned and adequately spaced within the formwork. This helps facilitate the flow of concrete and prevents congestion, which can lead to honeycombing around the reinforcement areas.

7. Consistent workmanship: Maintain a high level of workmanship throughout the construction process. Proper supervision, attention to detail, and adherence to construction schedules help prevent rushed work and minimize the chances of mistakes that can result in honeycombing.

8. Adequate curing: Follow appropriate curing procedures to promote proper hydration and strength development of the concrete. Adequate curing helps prevent surface drying, cracking, and the formation of weak zones that can contribute to honeycombing.

9. Quality control and inspection: Implement regular quality control measures, including inspection and testing, to identify potential issues early on. Conduct visual inspections, slump tests, and use other appropriate testing methods to ensure the concrete meets the required standards and specifications.

10. Adverse weather considerations: Take into account weather conditions during concrete placement. Make necessary adjustments in the mixture design, pouring techniques, and curing methods to compensate for extreme temperatures, humidity, or wind that can affect workability and increase the risk of honeycombing.

How to repair honeycombs in concrete and in construction?

Repairing honeycombs in concrete involves a series of steps to address the voids and restore the structural integrity. Here is a general guide on how to repair honeycombs in concrete and construction:

1. Identify the extent of honeycombing: Inspect the affected area to determine the size, depth, and distribution of the honeycombs. Assess if the honeycombing is limited to the surface or if it extends deeper into the structure.

2. Clean the damaged area: Remove any loose debris, dirt, or unsound concrete from the honeycombed areas. Use appropriate tools, such as wire brushes or high-pressure water jets, to clean the surface thoroughly.

3. Prepare the repair materials: Depending on the severity of the honeycombing and the specific repair requirements, select suitable repair materials. These may include polymer-modified repair mortars, epoxy-based compounds, or grouts specifically designed for structural repairs.

4. Apply a bonding agent: Prior to applying the repair material, apply a bonding agent or primer to enhance the adhesion between the existing concrete and the repair material. Follow the manufacturer's instructions for proper application and curing time.

5. Fill the voids: Fill the honeycombed areas with the selected repair material. Use trowels, putty knives, or other appropriate tools to pack the material tightly into the voids. Ensure that the repair material fully fills the voids and achieves proper compaction.

6. Consolidate and level the surface: Consolidate the repair material by using vibration techniques or other means as recommended by the product manufacturer. Level the surface to match the surrounding concrete, ensuring a smooth and uniform finish.

7. Curing and protection: Follow the curing requirements specified for the repair material. Apply appropriate curing methods, such as covering the repaired area with curing compounds or plastic sheets, to maintain moisture and promote proper hydration.

8. Surface Finishing: Once the repair has cured sufficiently, perform any necessary surface finishing techniques to achieve the desired appearance. This may involve sanding, grinding, or applying a suitable coating or protective layer to match the surrounding surface texture.

To get more details, watch the following video tutorial.

Video Source: Civil Engineering Bitz!!

A general overview of the repair process can be found in the above steps. It is important to note that the specific repair methods and materials will vary according to the severity of the honeycombing, the structural requirements, and the recommendations of structural engineers or repair specialists. Concrete repair and construction professionals should be consulted when there are significant honeycombing or complex structural issues.
