Why Hairline Cracks in Concrete Occur: Types, Prevention, and Fixes

Concrete, an integral component of construction, is esteemed for its durability and strength. However, even this robust material is susceptible to the passage of time and environmental stresses. Among the common issues affecting concrete structures, the emergence of hairline cracks is prevalent.

In this comprehensive article, we delve into the reasons behind these cracks, explore the various types of cracks that can manifest in concrete, discuss meticulous methods of prevention, provide insights into effective remedies, and introduce additional considerations.

Understanding Hairline Cracks in Concrete

Reasons for Hairline Cracks:

Shrinkage: The natural process of concrete drying and curing induces shrinkage, resulting in subtle but significant hairline cracks. These cracks often radiate from vulnerable points, such as corners or edges.

Temperature Fluctuations: Variations in temperature, particularly in regions with extreme climates, lead to thermal expansion and contraction. Such movements create stress that precipitates hairline cracks.

Settlement Discrepancies: Inconsistent settling of the ground beneath a concrete structure generates uneven stress. This stress, over time, manifests as hairline cracks, signalling potential issues.

Overloading: Exceeding the load-bearing capacity of concrete through excessive weight or pressure can cause micro-cracking, visible in the form of hairline fissures.

Types of Cracks in Concrete

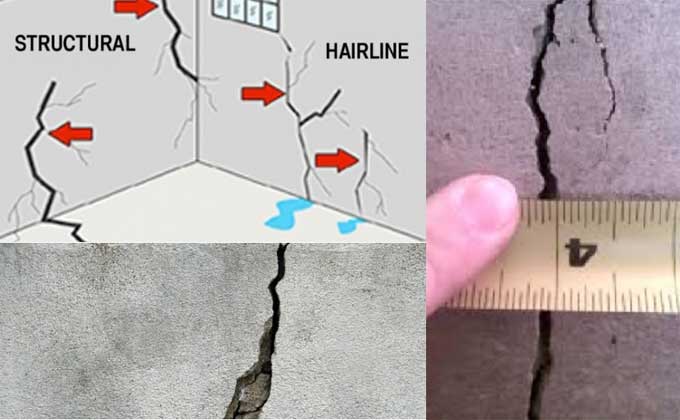

Hairline Cracks: These subtle cracks, often barely perceptible, result from internal stresses like shrinkage or minor movements in the substrate. Despite their size, they merit attention due to their potential to expand.

Map Cracks: These cracks form irregular patterns reminiscent of maps. They occur due to the differential drying rates of surface layers and underlying concrete, leading to cracking in decorative finishes.

Plastic Shrinkage Cracks: Visible shortly after pouring, these cracks arise from rapid moisture loss during the early curing stages. They typically run parallel and are indicative of inadequate curing measures.

Settlement Cracks: Uneven settling of the ground beneath a structure results in diagonal cracks, indicating that the foundation isn't uniformly supported.

Expansion Cracks: Concrete's response to temperature changes leads to expansion and contraction, resulting in visible cracks. Expansion joints can mitigate these types of cracks.

Prevention of Hairline Cracks

Proper Mix Design: A balanced mix of cement, aggregates, and water ensures optimal strength and reduces the likelihood of cracks during the curing process.

Controlled Curing: Employing moist curing methods or using curing compounds slows moisture evaporation, preventing rapid surface drying and minimizing the risk of cracks.

Strategic Joint Placement: Incorporating expansion and control joints facilitates controlled cracking, relieving stress and reducing the likelihood of random cracks.

Reinforcement Utilization: Steel reinforcements enhance tensile strength, minimizing the risk of cracking under stress.

Improved Concrete Practices: Minimize water content, use air-entrained concrete in freezing conditions, and avoid rapid temperature changes to prevent cracks.

Fixing Hairline Cracks

Hairline cracks in concrete can be minor annoyances or signs of more significant structural issues. When it comes to addressing these cracks, it's crucial to start with a thorough assessment, followed by the appropriate repair method. In this section, we'll delve into the steps involved in fixing hairline cracks.

1. Identifying the Severity: Before you embark on any repair journey, it's essential to gauge the severity of the hairline cracks. Not all cracks are created equal, and their seriousness can vary widely. Here's how to identify the severity:

  • Hairline vs. Wide Cracks: Hairline cracks are typically very narrow, often less than 1/16 inch (1.6 mm) wide. Wider cracks may indicate more severe problems.
  • Depth: Assess how deep the crack goes. Surface-level cracks may not require extensive repairs, but deeper cracks can pose structural risks.
  • Location: The location of the crack can provide clues. Cracks near load-bearing areas or critical structural points demand more attention.
  • Pattern: Examine the crack's pattern. Is it a single, straight line, or does it form a complex network? Complex patterns might suggest underlying issues.

2. DIY Repair Methods: For minor hairline cracks that are superficial and not indicative of structural problems, you can consider DIY repair methods. Here are some steps to follow:

  • Clean the Crack: Begin by cleaning the crack using a wire brush, compressed air, or a vacuum to remove debris and loose particles.
  • Fill the Crack: Use a concrete patching compound or a specialized crack filler to fill the crack. Ensure the filler is pushed deep into the crack and is level with the surrounding surface.
  • Smooth and Seal: After filling, use a putty knife or trowel to smooth the surface. Allow it to dry and then apply a concrete sealer to protect the repair.

Keep in mind that DIY repairs are suitable for cosmetic fixes and minor cracks. For more substantial or structural issues, it's advisable to seek professional assistance.

3. Professional Repair Options: When hairline cracks are extensive, deep, or recurring, it's best to enlist the expertise of a professional concrete contractor. Professionals have access to advanced equipment and techniques to ensure a thorough and lasting repair. Some common professional repair options include:

  • Epoxy Injection: This method involves injecting epoxy resin into the crack, effectively bonding it together and restoring structural integrity.
  • Overlay or Resurfacing: For larger surface cracks, an overlay or resurfacing can provide a new, durable surface layer.
  • Repointing and Rebuilding: In cases where the cracks have compromised the structural integrity, repointing (renewing mortar joints) or rebuilding may be necessary.

4. Costs and Considerations: The cost of repairing hairline cracks in concrete can vary widely based on factors such as crack severity, repair method, and location. Here are some considerations:

  • DIY Costs: DIY repairs are generally more affordable, with materials costing $10 to $50. However, the longevity of these fixes may be limited.
  • Professional Costs: Professional repairs can range from hundreds to thousands of dollars, depending on the extent of the damage and the chosen repair method.
  • Long-Term Savings: Investing in professional repairs for structural issues can prevent more extensive and costly damage down the road.

Before proceeding with any repair, consider obtaining multiple quotes from qualified contractors to ensure you get the best value and a long-lasting solution.

Fixing hairline cracks in concrete requires a systematic approach that begins with identifying the severity of the issue. For minor cracks, DIY repairs can suffice, but for significant or structural problems, it is wise to consult with professionals who can recommend and execute the most suitable repair method while considering the associated costs and long-term benefits.

Additional Considerations

Proactive Monitoring: Regular inspections and monitoring of cracks can identify potential issues before they escalate.

Maintenance: Maintain proper drainage to prevent water accumulation near concrete structures, as excessive moisture can exacerbate cracks.

Reinforced Concrete: In critical applications, consider using reinforced concrete to minimize the impact of cracks on structural integrity.

To get more details, watch the following video tutorial.

Video Source: Civil Mentors

Final Thoughts

Hairline cracks, though seemingly inconsequential, warrant meticulous attention to ensure the long-term stability of concrete structures. Comprehending the causes, recognizing various crack types, implementing preventive strategies, and promptly addressing cracks through appropriate remedies are vital to preserving the integrity of the concrete.

By delving deeper into the complexities of these minute rifts, we ensure that concrete continues to serve as an enduring and reliable building material for generations to come.
