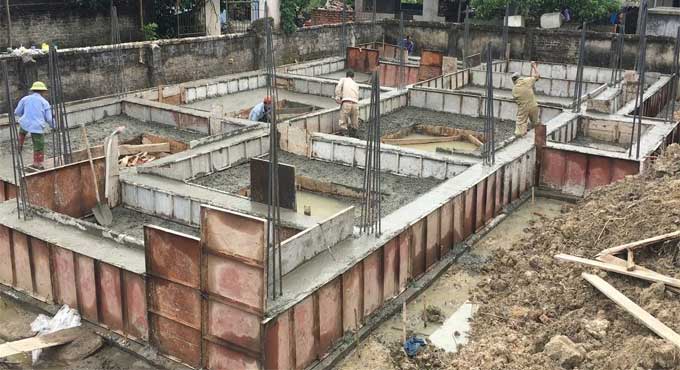

Foundations in Construction: Exploring Types, Uses, and Best Practices

Foundations are the backbone of any construction project, providing stability, support, and load distribution for buildings and structures. They serve as the interface between the structure and the underlying soil or rock, transmitting the loads from the superstructure to the ground. Different types of foundations are used in construction to suit various soil conditions, structural requirements, and environmental factors.

This article will explore the various types of foundations commonly used in construction, their unique features, and their specific uses.

1. Shallow Foundations

Shallow foundations, also known as spread footings, are the most common type of foundation used when the soil near the ground surface has adequate bearing capacity to support the building loads. These foundations typically penetrate only a few feet into the ground. Shallow foundations can be further classified into several types:

a. Strip Footing

Supporting load-bearing walls or closely spaced columns, strip footings are continuous bases. They are long and narrow, running along the length of the wall or column line. Strip footings are used in low to moderately-loaded structures, such as residential buildings.

b. Pad Footing

Pad footings, also called isolated footings, are individual footings that support single columns or isolated loads. They are circular, square, or rectangular in shape and are used when the loads are concentrated at specific points.

c. Raft Foundation

A raft foundation, also known as a mat foundation, is a large slab that supports the entire building's load. It spreads the load over a large area, reducing the stress on the underlying soil. Raft foundations are suitable for soft or loose soil conditions and are commonly used in areas with a high water table.

d. Combined Footing

If there is a possibility of overlap between two or more columns' individual footings, combined footings are used. A combined footing spans the area under multiple columns, distributing the loads effectively.

2. Deep Foundations

Deep foundations are used when the soil near the surface cannot support the building loads or when the structure needs to be anchored to deeper, more stable layers. Deep foundations transfer the loads to the deeper soil or rock layers through piles or drilled shafts. Deep foundations come in several variations, including:

a. Pile Foundation

A pile foundation consists of long, slender, and vertical structural elements made of concrete, steel, or timber. Piles are driven into the ground or installed by drilling to reach stable soil or rock layers. They transfer the loads through skin friction and end bearing.

  • Driven Piles: These are piles that are installed by driving them into the ground using a hammer or a vibratory driver. Common types of driven piles include steel H-piles, concrete piles, and timber piles.
  • Bored Piles: Bored piles are installed by drilling a hole into the ground and then filling it with concrete or placing a precast concrete pile inside the hole.

b. Caisson Foundation

Caissons are watertight structures made of wood, concrete, or steel that are sunk into the ground using excavation or hydraulic methods. A concrete foundation is then created by filling them with cement. Caisson foundations are commonly used in bridge piers and other marine structures.

c. Pile Raft Foundation

A pile raft foundation combines the concepts of shallow and deep foundations. It consists of both a pile foundation and a raft foundation. Piles are installed to support the building loads, and a raft foundation is constructed on top of the piles to distribute the loads.

Plum concrete is utilized for shoreline protection in coastal areas to mitigate the erosive effects of waves and tides. It forms a durable and resistant barrier against the forces of water, safeguarding the land and infrastructure.

What is the method of transportation of Plum Concrete?

The following methods can be used to transport plum concrete:

3. Mat Foundations

Mat foundations, also known as raft foundations, are used when the entire building load needs to be distributed over a large area of the soil. They are suitable for buildings with heavy loads or in areas with poor soil conditions. Mat foundations are designed to transfer the loads to a wider area, reducing the pressure on the underlying soil.

4. Floating Foundations

Floating foundations, also called floating slabs or slab-on-grade foundations, are used in areas with expansive soils or frost heave potential. These foundations do not have any footing or deep excavation. Instead, the building is constructed directly on a concrete slab that "floats" on the ground's surface. The slab is designed to accommodate the ground's movement without causing damage to the structure.

5. Sloped Foundations

Sloped foundations are used in hilly or uneven terrains where the ground is not level. These foundations are constructed with a stepped or terraced design to follow the natural slope of the land. Retaining walls or embankments may also be used to create a level area for the building.

6. Pier Foundations

Pier foundations consist of columns or piers that support the building loads at specific points rather than distributing them over a continuous foundation. Piers are used when the soil conditions are not uniform, and a traditional continuous foundation may not be feasible.

7. Stepped Foundations

Stepped foundations are used when the building or structure is constructed on a slope, and the foundation needs to be stepped to match the ground's contour. Each step is designed to carry the load for that particular section of the building.

Uses of Different Types of Foundations

The choice of foundation type depends on various factors, including soil conditions, building loads, structure type, and local regulations. The following are some common uses of different types of foundations in construction:

1. Shallow Foundations

  • Strip footings and pad footings are commonly used for small residential buildings, individual columns, and light loads.
  • Raft foundations are suitable for heavy loads and in areas with poor soil conditions, such as clay or soft soils.
  • Combined footings are used for closely spaced columns in situations where individual footings would overlap.

2. Deep Foundations:

  • Pile foundations are used in structures with heavy loads or in areas with weak or compressible soils.
  • Caisson foundations are employed in marine structures and bridge piers that require deep support.
  • Pile raft foundations are used when a combination of shallow and deep foundation elements is necessary.

3. Mat Foundations

  • Mat foundations are ideal for structures with heavy loads, such as industrial buildings, high-rise buildings, and large-scale infrastructure projects.

4. Floating Foundations

  • Floating foundations are used in areas with expansive soils, such as clay, or where frost heave is a concern.

5. Sloped Foundations

  • Sloped foundations are used in hilly or uneven terrains, such as hillside homes or structures built on steep slopes.

6. Pier Foundations

  • Pier foundations are used in areas with non-uniform soil conditions, such as coastal regions or areas with varying soil profiles.

7. Stepped Foundations

  • Stepped foundations are employed when constructing buildings on sloped sites, allowing for a level building platform.

Factors Influencing the Choice of Foundations

Several factors influence the selection of the most appropriate foundation type for a construction project:

1. Soil Conditions: The soil type, bearing capacity, and settlement characteristics of the site play a crucial role in determining the suitable foundation type.

2. Structural Loads: The magnitude and distribution of the loads imposed by the structure are significant considerations in foundation design.

3. Building Height and Type: Tall or heavy structures may require deeper foundations to ensure stability and prevent excessive settlement.

4. Site Constraints: Site conditions, available space, and neighbouring structures may limit the options for foundation types.

To get more details, watch the following video tutorial.

Video Source: Structures Explained

5. Environmental Factors: Local climate, seismic activity, and water table levels can impact foundation design and material choices.

6. Cost Considerations: The budget for the construction project may influence the choice between shallow and deep foundations.

7. Building Codes and Regulations: Local building codes and regulations may dictate specific requirements for foundation design and construction.


In the world of construction, choosing the right foundation type is paramount for the safety, stability, and long-term performance of any structure. The selection process involves a comprehensive analysis of soil conditions, structural loads, and site-specific factors. From shallow foundations like strip footings and pad footings to deep foundations such as pile foundations and caissons, each type has its unique features and applications.

The successful implementation of the right foundation type ensures that buildings and structures stand tall and strong, withstanding the test of time and the forces of nature. As technology and engineering continue to advance, foundation design and construction evolve, bringing about innovative solutions that push the boundaries of architectural possibilities. By prioritizing sound foundation engineering and embracing the best practices associated with each type, the construction industry can build a solid future founded on safety, stability, and durability.

With foundations as the bedrock of construction excellence, the industry can continue to create awe-inspiring structures that inspire generations to come. From iconic skyscrapers to resilient infrastructure, foundations play an instrumental role in shaping the world we live in and providing a solid base for the future of construction.
