Everything You Need To Know About EDM in Surveying and Its Importance in Construction

In the ever-evolving world of construction and land surveying, technology plays a pivotal role in enhancing accuracy, efficiency, and precision. One such technological marvel is Electronic Distance Measurement (EDM), a key instrument in modern surveying that has revolutionized the way measurements are taken.

In this comprehensive article, we will delve deep into EDM in surveying, exploring its working principles, types, advantages, and most importantly, its immense importance in construction projects. We will also look into the future of EDM technology and its potential impact on the industry.

Understanding EDM in Surveying

Electronic Distance Measurement (EDM) is a technique used to precisely measure distances between two points by sending and receiving electromagnetic waves or signals. EDM instruments have largely replaced traditional methods like chains and tapes, offering a higher level of accuracy and efficiency. These devices have a range of applications, including construction, topographic mapping, boundary surveys, and geodetic measurements.

Working Principles of EDM

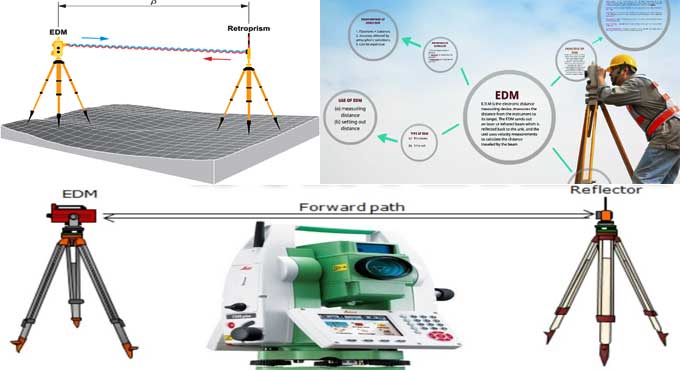

EDM instruments operate on the principles of electromagnetic wave propagation. Here's a simplified breakdown of how they work:

Emission of Signals: The EDM instrument emits a beam of electromagnetic waves, typically in the form of infrared or microwave signals, toward a target point.

Reflection and Return: The emitted signal reaches the target point, where it reflects off a reflector or target prism placed at that location.

Return Signal Reception: The instrument then captures the reflected signal as it returns to the EDM.

Calculation: By measuring the time taken for the signal to travel to the target and back, the instrument calculates the distance between the instrument and the target point using the formula: Distance = (Speed of Light × Time of Flight) / 2.

Display: The calculated distance is displayed digitally on the instrument's screen, providing real-time measurements.

Types of EDM Instruments

EDM instruments come in several types, each catering to specific surveying needs:

Reflectorless EDM: These instruments can measure distances to target points without the need for reflectors. They are ideal for capturing measurements in hard-to-reach or hazardous areas.

Prism-Based EDM: Prism-based EDM instruments rely on reflective prisms placed at target points. They offer exceptional accuracy and are commonly used in construction and land surveying.

Single-Frequency EDM: These instruments operate at a single frequency and are suitable for short to medium-distance measurements.

Multi-Frequency EDM: Multi-frequency EDM instruments provide higher accuracy and extended measurement ranges. They are often used for geodetic and precise surveying tasks.

Pulse-Based EDM: Pulse-based EDM devices emit short laser pulses and measure the time it takes for the pulse to return, providing distance measurements with outstanding precision.

Importance of EDM in Construction

Now that we have explored the fundamentals of EDM, let us dive into its crucial role in construction:

Precision Measurements: EDM instruments offer unparalleled precision, allowing construction professionals to measure distances with accuracy up to millimetres. This precision is essential for ensuring that structures align correctly and meet design specifications.

Time Efficiency: EDM significantly reduces the time required for distance measurements compared to manual methods like tape measures or theodolites. This efficiency translates to faster project completion and reduced labour costs.

Safety: Reflectorless EDM instruments enable measurements to be taken from a safe distance, eliminating the need for surveyors to access potentially dangerous areas, such as steep slopes or construction sites with heavy machinery.

Data Integration: Modern EDM instruments often come equipped with data storage and transfer capabilities, allowing surveyors to seamlessly integrate measurements into digital design and construction software. This streamlines project management and reduces the risk of errors associated with manual data entry.

Quality Control: EDM plays a vital role in quality control during construction. Surveyors can use EDM to monitor structural changes, assess foundation stability, and ensure that construction elements align with design specifications.

Project Cost Management: Accurate distance measurements with EDM help in managing construction costs effectively. It prevents the wastage of materials due to inaccurate measurements and ensures that resources are optimally utilized.

Land Surveying: Beyond construction, EDM is essential in land surveying, which provides the foundation for many construction projects. Accurate land measurements ensure that developments are aligned correctly with property boundaries and local regulations.

Geodetic Applications: In geodetic surveying, EDM is indispensable for measuring long distances, such as monitoring tectonic plate movements, calculating elevation changes, and conducting large-scale mapping projects.

The Future of EDM in Surveying and Construction

As technology continues to advance, the future of EDM in surveying and construction looks promising:

Improved Accuracy: Future EDM instruments are likely to feature even greater accuracy, pushing the boundaries of precision in construction and surveying applications.

Enhanced Integration: EDM devices will continue to evolve to seamlessly integrate with Building Information Modeling (BIM) and Geographic Information Systems (GIS), allowing for more efficient project planning and management.

Automation: Automation and artificial intelligence may play a more prominent role in EDM instruments, further reducing the need for manual intervention in distance measurements.

Wireless Connectivity: Wireless connectivity will enable real-time data transfer between field instruments and office computers, facilitating instant decision-making and collaboration.

Augmented Reality (AR): AR technology could be integrated with EDM instruments, providing on-site visualization of survey data and design overlays for construction projects.

Environmental Considerations: Future EDM instruments may focus on reducing their environmental footprint, utilizing sustainable materials and energy-efficient components.

Global Positioning System (GPS) Integration: Combining EDM with GPS technology will enable seamless measurements in both horizontal and vertical directions, expanding its range of applications.

Remote Surveying: EDM instruments with remote surveying capabilities will allow surveyors to collect data from a distance, increasing safety and versatility.

Final Thoughts

Electronic Distance Measurement (EDM) has already made a significant impact on the fields of surveying and construction, offering precision, efficiency, and safety in distance measurements. As technology continues to advance, the future of EDM promises even greater accuracy, integration with other technologies, and enhanced automation.

For professionals in construction, architecture, engineering, and surveying, embracing the evolving capabilities of EDM instruments will be essential to staying at the forefront of their industries. With EDM as a cornerstone, the construction and surveying sectors are poised to achieve new levels of excellence in project execution and accuracy.
