Construction Concrete Vibrators: Types, Alternatives, Advantages, and Disadvantages

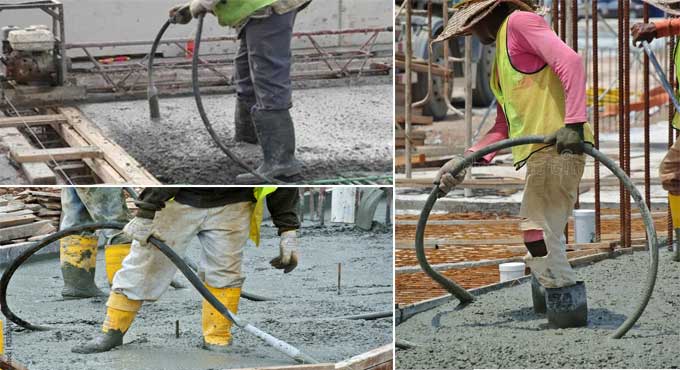

What do you mean by Concrete Vibrator in Construction?

A concrete vibrator is a machine used to consolidate freshly poured concrete. It does this by vibrating the concrete, which helps to remove air bubbles and excess water. This results in a more compact and uniform concrete, which is stronger and more durable.

Concrete vibrators are essential tools used in construction to ensure proper consolidation and compaction of freshly poured concrete. They are designed to eliminate air voids, increase concrete density, and enhance overall structural integrity.

A concrete vibrator typically consists of a vibrating head, also known as a poker or needle, and a power source. The vibrating head is inserted into the wet concrete, and the vibrations are transmitted through the concrete, causing it to settle and compact. This process helps to remove trapped air bubbles and excess water, resulting in a stronger and more durable concrete structure.

What are the different types of concrete vibrators?

A concrete vibrator can be used for a wide range of applications and tasks, depending on its design. The following are six of the most common types:

1. Internal Vibrators: Also known as immersion or poker vibrators, internal vibrators are the most commonly used type. They consist of a vibrating head or poker connected to a power source. Internal vibrators are inserted vertically into the concrete mix, and the vibrations are transmitted directly to the surrounding concrete, ensuring thorough compaction.

2. Formwork Vibrators: Formwork vibrators, also called external vibrators, are used to vibrate the formwork or moulds rather than directly vibrating the concrete. These vibrators are mounted on the exterior surface of the formwork and transmit vibrations to the concrete through the formwork. Formwork vibrators are suitable for large-scale projects where a high volume of concrete needs to be consolidated.

3. Surface Vibrators: Surface vibrators are used to compact the concrete surface and are particularly effective for flatwork applications such as floors and pavements. These vibrators are typically large and rectangular in shape, with vibrating plates that are moved across the surface of the concrete to achieve even compaction.

4. Vibrating Tables: Vibrating tables are stationary platforms equipped with vibrating motors or eccentric weights. They are used for compacting concrete in precast concrete manufacturing or for casting concrete elements with intricate shapes or delicate details. The concrete is placed on the vibrating table, and the vibrations help to settle and consolidate it.

5. Vibrating Screeds: Vibrating screeds are used for levelling and finishing large concrete slabs, such as those found in road construction or warehouse floors. These tools consist of a screed blade powered by a vibrating motor. As the screed is pushed or pulled along the concrete surface, it levels the concrete and removes excess air and voids.

6. Surface Air Vibrators: Surface air vibrators are specifically designed to remove air bubbles trapped near the surface of the concrete. They are lightweight and portable, making them suitable for small-scale projects or areas where other types of vibrators cannot easily reach. Surface air vibrators are typically handheld and are moved along the surface of the concrete to release the trapped air.

What are some alternatives to Concrete Vibrators?

While concrete vibrators are widely used and highly effective for consolidating concrete, there are a few alternative methods that can be used in certain situations. Here are a few alternatives to concrete vibrators:

1. Rodding: Rodding is a manual method where a long steel rod or rebar is inserted into the wet concrete and manually agitated in a back-and-forth motion. This process helps in removing air pockets and consolidating the concrete. Rodding is typically used for small-scale projects or areas where access is limited for larger vibrators.

2. Vibrating pokers: These are long, thin rods that are inserted into the concrete and vibrated by hand. Vibrating pokers are a good option for small jobs or for areas that are difficult to reach with a concrete vibrator.

3. Vibrating tables: These are tables that vibrate, and the concrete is placed on the table. The vibration of the table helps to consolidate the concrete. Vibrating tables are a good option for large slabs of concrete.

4. High-Frequency Vibrating Screeds: High-frequency vibrating screeds are specialized tools that utilize high-frequency vibrations to compact and level concrete surfaces. These screeds are typically powered by electricity and provide rapid vibrations, allowing for efficient consolidation of the concrete.

5. Mechanical tampers: These are heavy tools that are used to strike the concrete and consolidate it. Mechanical tampers are a good option for large jobs or for areas that are too hard to reach with a concrete vibrator.

6. Vibrating Beams or Truss Screeds: Vibrating beams or truss screeds are used for levelling and compacting large concrete slabs, such as floors, bridges, or highways. These tools consist of long vibrating beams or trusses that are dragged across the concrete surface, achieving compaction and a smooth finish.

What are the advantages and disadvantages of Concrete vibrators in Construction?

Advantages of Concrete Vibrators in Construction

1. Improved Concrete Consolidation: Concrete vibrators help in achieving better consolidation by removing air voids and ensuring uniform distribution of the concrete mix. This results in a denser and stronger concrete structure with enhanced durability.

2. Enhanced Concrete Strength: Proper compaction through concrete vibrators increases the bond between the aggregate and cement paste, resulting in improved compressive strength. This is crucial for load-bearing structures and ensures their long-term stability.

3. Reduced Risk of Voids and Defects: The vibrations from concrete vibrators help in reducing the risk of voids, honeycombing, and segregation within the concrete. This leads to a smoother and more aesthetically pleasing finish, minimizing the need for repairs or remedial work.

4. Improved uniformity: A well-compacted concrete is more uniform than concrete that is not properly consolidated. This is because the concrete vibrator helps to distribute the concrete evenly, resulting in a more consistent product.

5. Time and Labor Savings: Properly consolidated concrete sets faster and requires less time for curing. By ensuring efficient compaction, concrete vibrators can contribute to shorter construction schedules and reduced labour requirements.

Disadvantages of Concrete Vibrators in Construction

1. Noise and Vibration: Concrete vibrators generate noise and vibration during operation, which can be physically demanding for operators and nearby workers. Adequate safety measures, such as wearing appropriate personal protective equipment (PPE), are necessary to mitigate these effects.

2. Potential Segregation: Excessive or improper use of concrete vibrators can lead to the segregation of concrete components, such as the separation of aggregates and cement paste. This can weaken the overall structure and compromise its integrity if not managed properly.

3. Equipment Limitations: Concrete vibrators come in various sizes and types, and the choice of vibrator depends on the specific project requirements. However, certain areas with limited accessibility or intricate shapes may pose challenges to using standard vibrators effectively.

4. Operator Skill and Training: Operating concrete vibrators requires skill and proper training to ensure optimal results. Inexperienced operators may struggle to achieve uniform compaction or inadvertently cause damage to the concrete or formwork.

5. Cost: Concrete vibrators can be expensive to purchase or rent, especially for smaller construction projects. However, considering the benefits they provide in terms of improved concrete quality and reduced potential for future repairs, the long-term cost savings can outweigh the initial investment.

6. Environmental impact: Concrete vibrators can produce noise and vibration, which can be a nuisance to people in the area.

What are tips to use concrete vibrators safely and effectively?

Concrete vibrators can be used safely and effectively if you follow these tips:

  • Always wear safety glasses and gloves when using a concrete vibrator.
  • Be careful not to vibrate the concrete too much, as this can damage the concrete.
  • Do not vibrate the concrete near electrical wires or other sensitive equipment.
  • Inspect the concrete vibrator regularly for wear and tear.

To get more details, watch the following video tutorial.

Video Source: Civil Engineer Deepak Kumar

By following these tips, you can help to ensure that concrete vibrators are used safely and effectively.
