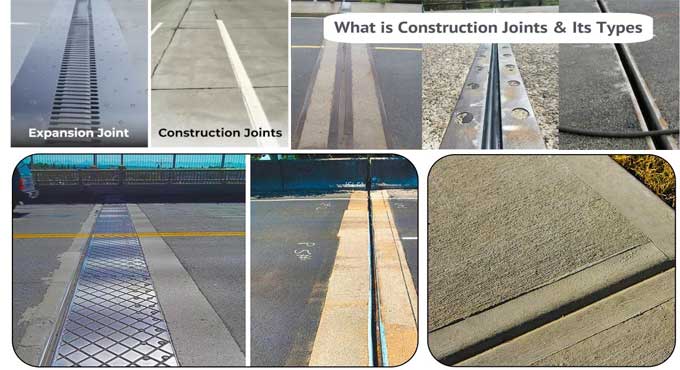

Understanding the Difference between Construction Joints and Expansion Joints: Types, Advantages, Disadvantages, and Limitations

In the realm of construction, particularly in concrete structures, precision and foresight are key to ensuring the longevity and integrity of buildings. Two crucial elements that play a pivotal role in this are construction joints and expansion joints. These joints are strategically incorporated into concrete structures to accommodate movement, prevent cracks, and maintain structural stability.

In this comprehensive blog article, we will explore the difference between construction joints and expansion joints, delve into the types of movement joints, examine why they are required in concrete, and discuss their advantages, disadvantages, and limitations.

Understanding Construction Joints

Construction joints, also known as cold joints, are intentional interruptions in the concrete placement process. They occur when concrete pouring is stopped for a significant period (beyond initial setting time) before resuming. Construction joints are typically found in large concrete pours, such as those for foundations, slabs, and walls.

Advantages of Construction Joints

Controlled Placement: Construction joints allow for controlled placement of concrete. This is beneficial when pouring concrete in sections, as it ensures a uniform and consistent result.

Reduced Heat of Hydration: Large concrete pours generate significant heat during the curing process. Introducing construction joints helps reduce this heat, preventing thermal cracking.

Ease of Construction: Construction joints simplify the construction process by breaking it into manageable segments, reducing the risk of errors.

Disadvantages of Construction Joints

Potential Weakness: Construction joints can become potential weak points in a structure if not properly designed and executed.

Appearance: The presence of construction joints may affect the aesthetics of the finished surface, particularly in exposed architectural concrete.

Understanding Expansion Joints

Expansion joints, on the other hand, are designed to accommodate the natural movement of concrete structures caused by factors such as temperature changes, moisture, and settling. These joints allow for expansion and contraction without inducing stress that could lead to cracks.

Advantages of Expansion Joints

Prevent Cracking: Expansion joints are crucial in preventing cracks caused by temperature fluctuations and structural movement, ensuring the structural integrity of the concrete.

Aesthetics: They are often designed to be inconspicuous or blend seamlessly with the surrounding structure, preserving the appearance of the concrete surface.

Structural Integrity: Expansion joints help maintain the structural integrity of the building by allowing for controlled movement without transferring stress to other parts of the structure.

Disadvantages of Expansion Joints

Maintenance: Over time, expansion joints may require maintenance or replacement, particularly in high-traffic areas.

Cost: The installation of expansion joints adds to the initial construction cost.

Types of Movement Joints

Movement joints are essential components in concrete construction. They can be categorized into several types based on their function and location:

1. Isolation Joints: These joints separate concrete elements to prevent them from interacting and transmitting loads or movements to each other. Isolation joints are commonly used between slabs and columns or walls.

2. Expansion Joints: As discussed earlier, expansion joints accommodate thermal expansion and contraction, as well as other movements in the structure. They are often found in bridges, highways, and large concrete structures.

3. Contraction Joints: Contraction joints, also known as control joints, are deliberately placed to induce cracking at specific locations. This controlled cracking prevents random cracks from forming and instead encourages cracks to occur at predetermined points.

4. Construction Joints: Construction joints are introduced when the concrete pouring process is halted and resumed after a significant delay. They are typically used in large pours where continuous pouring is impractical.

5. Orthogonal Joints: Orthogonal joints are arranged at right angles to each other and are often used in pavements and slabs to control cracking.

6. Longitudinal and Transverse Joints: Longitudinal joints run parallel to the length of a structure, while transverse joints run perpendicular to it. These joints are common in road construction and bridges.

Why Are Movement Joints Required in Concrete?

The inclusion of movement joints in concrete structures serves several critical purposes:

Preventing Cracking: Perhaps the most crucial role of movement joints is to prevent uncontrolled cracking in concrete. Temperature changes and structural movements can exert stress on the concrete, leading to cracks. Movement joints absorb this stress, reducing the risk of random cracking.

Maintaining Structural Integrity: By accommodating movement, expansion joints help maintain the structural integrity of the concrete. They prevent the transfer of stresses to other parts of the structure, preserving its stability.

Enhancing Aesthetics: Expansion joints can be designed to complement the architectural aesthetics of the structure, ensuring that the finished surface looks appealing.

Allowing for Thermal Expansion and Contraction: Temperature fluctuations cause concrete to expand and contract. Expansion joints are crucial for accommodating these natural movements without causing damage.

Facilitating Repairs and Maintenance: Movement joints provide access points for maintenance and repairs, making it easier to address issues such as waterproofing or sealant replacement.

Advantages of Movement Joints in Concrete

The inclusion of movement joints in concrete structures offers numerous advantages:

Prevent Cracking: The primary benefit is the prevention of uncontrolled cracking, which can compromise the structural integrity and aesthetics of the concrete.

Increased Lifespan: By reducing stress on the concrete, movement joints contribute to the longevity of the structure.

Enhanced Safety: Movement joints help maintain the safety and stability of structures, especially in high-stress environments or seismic-prone areas.

Aesthetic Appeal: Well-designed expansion joints can enhance the appearance of the finished concrete surface, contributing to the overall aesthetics of the structure.

Minimized Maintenance Costs: Properly placed movement joints can reduce the need for costly repairs and maintenance in the long run.

Disadvantages of Movement Joints in Concrete

While movement joints offer significant advantages, they also come with certain disadvantages:

Installation Costs: The initial installation of movement joints adds to the construction cost, including materials and labour.

Maintenance: Over time, movement joints may require periodic maintenance or replacement, which can be an ongoing cost for property owners.

Potential for Debris Accumulation: Gaps created by movement joints can accumulate dirt, debris, or water, potentially leading to maintenance issues or slip hazards.

Aesthetics: In some cases, the presence of visible expansion joints may affect the aesthetic appeal of the finished surface, particularly in architectural concrete.

Limitations of Movement Joints in Concrete

It is important to recognize the limitations of movement joints in concrete construction:

Not a Cure-All: While movement joints are effective in preventing many types of cracking, they cannot eliminate all potential sources of cracks, such as structural design flaws or material defects.

Maintenance Required: As mentioned earlier, movement joints may require periodic maintenance or replacement, which can be an ongoing cost for property owners.

Design and Placement are Critical: The effectiveness of movement joints depends on their proper design and placement. Incorrectly designed or poorly located joints may not provide the intended benefits.

Aesthetic Considerations: In architectural applications, the presence of visible movement joints must be carefully considered to ensure they align with the desired aesthetic.

To get more details, watch the following video tutorial.

Video Source: civilogy

Final Thoughts

In the dynamic world of concrete construction, movement joints are invaluable tools for preserving the structural integrity, durability, and aesthetics of buildings and infrastructure. Understanding the difference between construction joints and expansion joints, as well as the various types of movement joints, is essential for ensuring their proper implementation in construction projects.

Understanding the Difference between Construction Joints and Expansion Joints: Types, Advantages, Disadvantages, and Limitations

While movement joints offer numerous advantages, including crack prevention, enhanced longevity, and improved safety, they also come with certain disadvantages, such as installation costs and maintenance requirements. Recognizing these limitations and addressing them through careful design and maintenance practices is key to harnessing the full potential of movement joints in concrete structures.

In an ever-evolving construction landscape, movement joints continue to play a pivotal role in constructing resilient and enduring structures that can withstand the test of time and environmental stresses. Their careful incorporation into construction plans is a testament to the industry's commitment to quality, safety, and longevity.
