Plum Concrete: Exploring Its Application, Mixing, Uses, and Methodology

What do you mean by Plum Concrete?

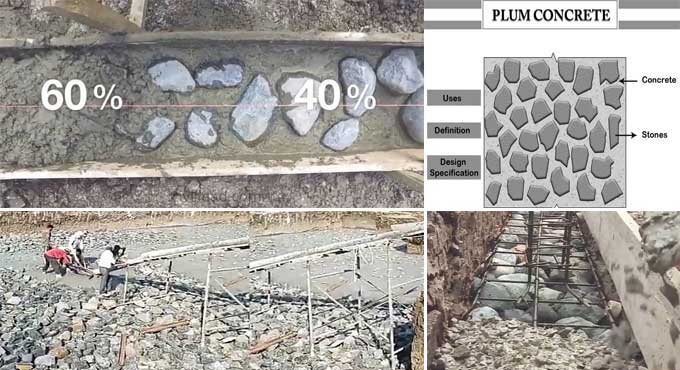

Plum concrete is a specific type of concrete mixture that incorporates large-sized stones or aggregates along with the usual cement, sand, and water components. This mixture is commonly used in construction projects where the primary goal is to create a strong and stable base or foundation.

Plum concrete is used to achieve the necessary surface level beneath the foundation and footing. If the needed thickness of PCC is substantial, it is utilized to reduce the cost of PCC. It is primarily employed in bulk concreting projects such as side slops, barriers, and gravity dams.

What is the Mixture of Plum Concrete?

The mixture of plum concrete is typically made up of the following:

  • Coarse aggregate: This is the largest component of plum concrete and provides strength and durability. It is typically made up of crushed stone or gravel.
  • Cement: Concrete is held together by cement as a binding agent. The powder is made from limestone and clay that has been heated and ground.
  • Water: This is used to hydrate the cement and make the concrete workable.
  • Waste material: This is the material that is added to plum concrete to reduce the cost and make it more environmentally friendly. It can be anything from broken bricks and tiles to concrete rubble.

The amount of each component in the mixture of plum concrete will vary depending on the specific application. Plum concrete is a cost-effective and environmentally friendly alternative to traditional concrete. It is also strong and durable, making it a good choice for a variety of construction projects.

What are the uses of Plum Concrete in the field of construction?

Plum concrete finds several uses in the field of construction due to its unique properties. Some of the common applications of plum concrete are:

1. Foundations: Plum concrete is widely used as a foundation material, especially for heavy structures or buildings. The inclusion of large stones in the mixture enhances the load-bearing capacity of the foundation, providing stability and durability.

2. Retaining Walls: Plum concrete is employed in the construction of retaining walls, which are designed to withstand the lateral pressure exerted by soil or water. The use of plum concrete enhances the strength and stability of the wall, making it resistant to deformation and failure.

3. Dams and Reservoirs: Plum concrete is utilized in the construction of dams and reservoirs, particularly in the lower regions where the water pressure is higher. The presence of large stones in plum concrete improves its stability and resistance to erosion, ensuring the structural integrity of the dam or reservoir.

4. Sub-base Material: Plum concrete serves as an excellent sub-base material for roads, pavements, and other structural elements. It provides a strong and stable layer that can withstand heavy loads and prevent uneven settling or deformation of the surface.

5. Stabilization of Slopes: In hilly or sloping terrains, plum concrete can be used to stabilize slopes and prevent erosion. The interlocking nature of the large stones in the concrete helps in maintaining the stability of the slope and reduces the risk of landslides.

6. Shoreline Protection: Plum concrete is utilized for shoreline protection in coastal areas to mitigate the erosive effects of waves and tides. It forms a durable and resistant barrier against the forces of water, safeguarding the land and infrastructure.

What is the method of transportation of Plum Concrete?

The following methods can be used to transport plum concrete:

  • Dump trucks: Dump trucks are the most common way to transport plum concrete. They are large and can carry a lot of concrete, making them ideal for long-distance transport.
  • Mixer trucks: Mixer trucks are used to mix the concrete on-site. They are not as large as dump trucks, but they are more versatile and can be used to transport concrete to remote locations.
  • Bales: Plum concrete can also be transported in bales. Bales are made of compressed concrete and are easy to transport. They are often used for small projects or for transporting concrete to remote locations.

The method of transportation that is used will depend on the specific project and the distance that the concrete needs to be transported.

Here are some of the factors to consider when choosing a method of transportation for plum concrete:

  • Distance: The distance that the concrete needs to be transported will determine the type of transportation that is needed. For long-distance transport, dump trucks are the most common option. For short-distance transport, mixer trucks or bales can be used.
  • Terrain: The terrain that the concrete will be transported over will also affect the type of transportation that is needed. For example, if the terrain is rough, dump trucks may not be able to get to the site. In this case, mixer trucks or bales may be a better option.
  • Cost: The cost of transportation will also be a factor to consider. Dump trucks are the most expensive option, while bales are the least expensive. Mixer trucks are in between.

Once the method of transportation has been chosen, the concrete can be loaded and transported to the site. It is important to follow all safety precautions when transporting plum concrete.

What is the methodology of plum concrete?

In order to prepare plum concrete correctly, a series of steps must be followed, from mixing to placement to curing. The methodology of plum concrete is described as follows:

1. Stone Selection: The first step is to select suitable large-sized stones or plums for the concrete mixture. The stones should be of good quality, strong, and free from any impurities that could affect the strength of the concrete.

2. Mix Design: The next step is to determine the appropriate mix design for the plum concrete. This involves calculating the proportions of cement, sand, water, and the size and quantity of large stones. The mix design is based on the desired strength, stability, and workability of the concrete.

3. Mixing: Once the mix design is established, the materials are combined in a concrete mixer or mixing platform. The large stones are added along with the cement, sand, and water, and the mixture is thoroughly mixed until a uniform consistency is achieved. Care should be taken to ensure that all the materials are evenly distributed.

4. Placement: After mixing, the plum concrete is ready for placement. It is poured or placed in the desired location, such as foundations or retaining walls. The concrete should be properly compacted using suitable tools to remove any voids or air pockets. Compaction helps in achieving higher strength and density in the concrete.

5. Leveling and Finishing: During placement, the plum concrete should be levelled and finished to achieve a smooth and even surface. Excess concrete can be removed, and the surface can be finished using appropriate tools to achieve the desired appearance.

6. Curing: Curing is a critical step in the methodology of plum concrete. After placement and finishing, the concrete should be cured properly to promote hydration and strength development. Curing involves keeping the concrete moist and protected from drying out for a specific period. Common methods of curing include water spraying, covering with wet hessian bags, or using curing compounds.

7. Quality Control: Throughout the entire process, it is essential to monitor and ensure quality control. This includes checking the materials, proportions, mixing consistency, compaction, and curing procedures. Regular testing of samples may be conducted to assess the strength and other properties of the plum concrete.

Depending on the project requirements, site conditions, and engineering recommendations, the specific methodology for plum concrete may vary.

To get more details, watch the following video tutorial.

Video Source: Civil DND Construction

In order to achieve the desired results, it is recommended to consult with experienced professionals and adhere to industry best practices.
